Before Starting the Engine

CAUTION:

TS220
TS220-UN-23AUG88

Prevent asphyxiation by providing adequate ventilation. If operating indoors, use an exhaust pipe extension to remove the exhaust fumes or open doors and windows to thoroughly ventilate the area.

  1. Check fuel gauge.

  2. P16101
    P16101-UN-24SEP10

    LV12904
    LV12904-UN-06DEC06

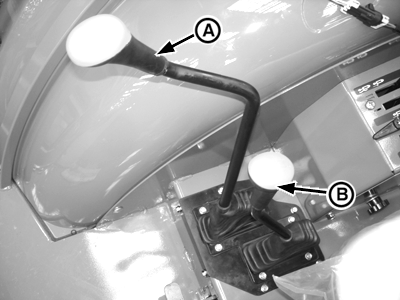

    A - Gear Shift Lever

    B - Range Shift Lever

    C - EH Directional Reverser Lever

    Transmission Controls: Put gear shift lever (A) in NEUTRAL or PARK and range shift lever (B) in NEUTRAL.

    PowrReverser™ Transmission: Put electro-hydraulic (EH) directional reverser lever (C) in NEUTRAL.


  3. P16502
    P16502-UN-11APR12

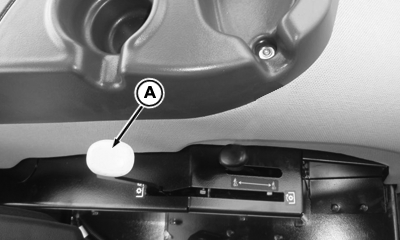

    A - PTO Switch Knob

    EH PTO control: Push PTO switch knob (A) down to disengage.


  4. P16503
    P16503-UN-11APR12

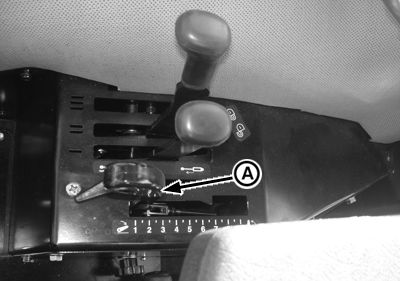

    A - PTO Lever

    Mechanical PTO control: Pull PTO lever (A) back to disengage.


  5. P16504
    P16504-UN-11APR12

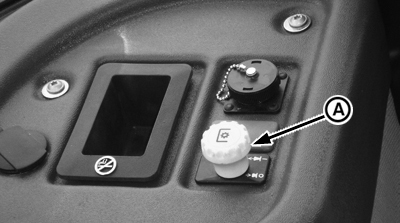

    A - Hitch Control Lever

    Push hitch control lever (A) forward to lower equipment to the ground.


  6. Turn key to RUN position and check to see if all indicator bulbs light. (If any indicator does not light, see your John Deere dealer.)

PX07220,000160E-19-20120411
