Operating PowrReverser™ Transmission

P16014
P16014-UN-16MAR10

PUM2071
PUM2071-UN-13FEB07

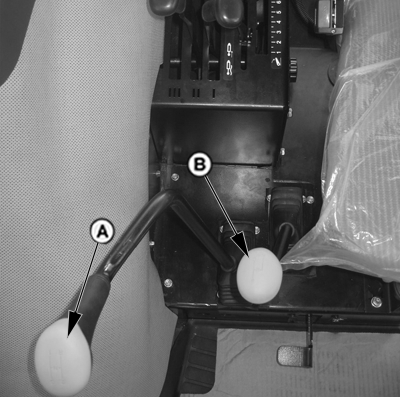

A - Gear Shift Lever

B - Range Shift Lever

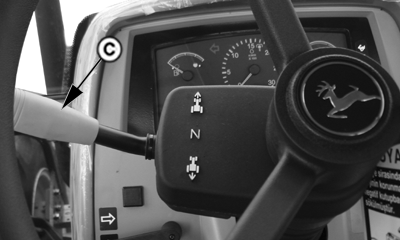

C - EH Directional Reverser Lever

CAUTION: Leaving transmission in gear with engine stopped WILL NOT prevent tractor from moving. Put transmission gear shift lever in PARK or NEUTRAL, electro-hydraulic directional reverser lever in NEUTRAL, and engage park brake (if equipped) before dismounting.

Gear shift lever (A) provides four forward travel speeds (1, 2, 3, and 4) and reverse.

Range shift lever (B) provides three speed ranges (A, B, and C).

Electro-hydraulic (EH) directional reverser lever (C) provides travel direction (forward or reverse).

When using range and gear shift levers in different combinations, 12 forward and reverse speeds are available.

  1. When starting tractor, put EH directional reverser lever in neutral and cycle clutch pedal one time to disengage the engagement override valve.

  2. IMPORTANT: To prevent unnecessary wear, never “ride” the clutch by resting a foot on the pedal.

    Depress clutch pedal and stop tractor before shifting range shift lever.

  3. Use EH directional reverser lever to select travel direction. You can change travel direction without depressing the clutch pedal.

  4. Depress clutch pedal when shifting gears. Gear shifts (1, 2, 3, and 4) can be made on-the-go, without stopping. Release clutch pedal gradually to take up load smoothly.

LV9588
LV9588-UN-06AUG04

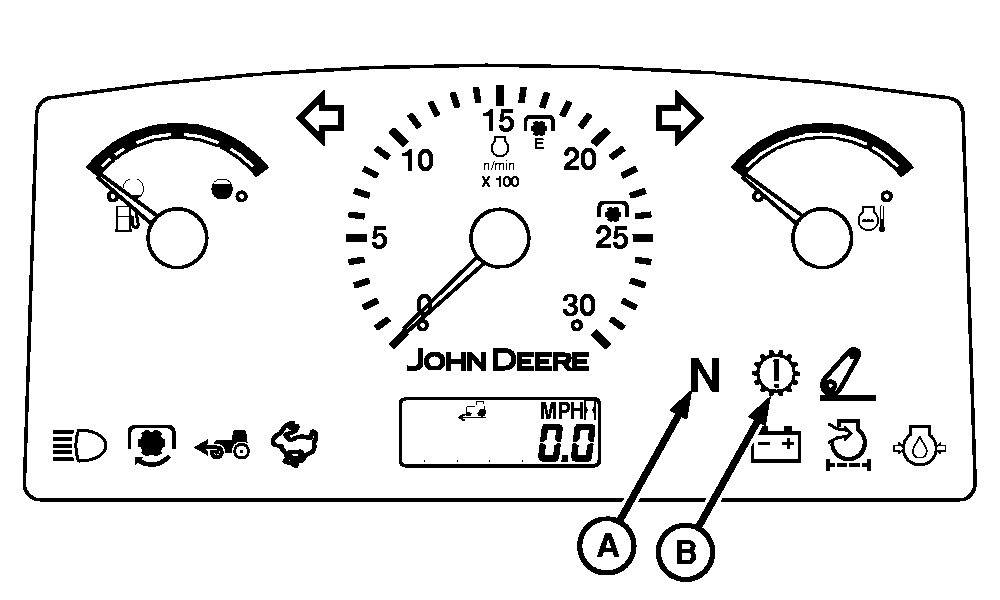

A - Neutral Indicator

B - Information Indicator

The neutral indicator (A) lights when gear shift lever and EH directional reverser lever are both in neutral. The indicator light will go out when the gear shift lever is put in PARK. The indicator light will flash if the gear shift lever is in Neutral and EH directional reverser lever is in FORWARD or REVERSE.

The information indicator (B) lights if a malfunction is detected in the transmission. If this indicator comes on, contact your John Deere dealer.
