Control Lever and Coupler Identification

P16126-UN-29OCT10

P16507-UN-11APR12

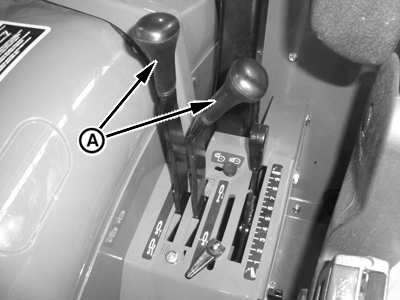

A - Selective control lever

B - No.1 Receptacles

C - No.2 Receptacles

Tractors equipped with one or two SCV's have the control lever (A) located to the right of the rockshaft levers which operates the lower coupler (#1 and #2) receptacles (B and C).
