Operating Tractor EH PTO (If Equipped)

LV12797-UN-04OCT06

LV9620-UN-11AUG04

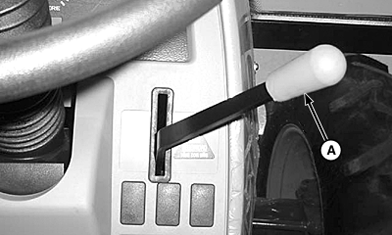

A - Hand Throttle Lever

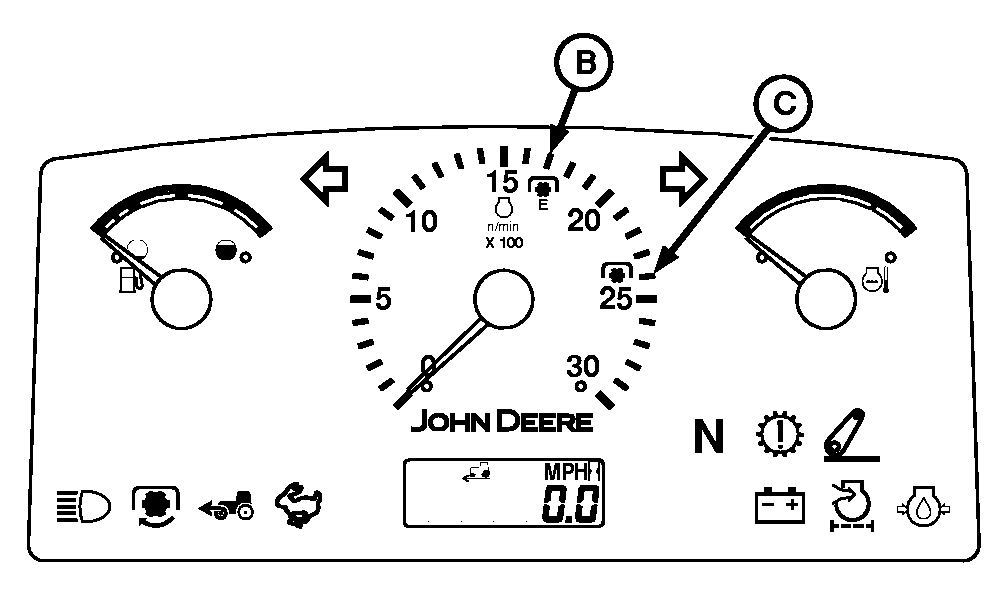

B - 540E Operation Speed

C - 540 Operation Speed

NOTE: Engine will start if EH PTO switch is up (engaged), but PTO shaft will not rotate until switch is reset.

1. Depress clutch pedal, start engine and push hand throttle lever (A) forward until tachometer indicates PTO rated speed:

   PTO Rated Speed
   PTO	Engine RPM Speed
   540E	1700
   540	2400 (full power)

   NOTE: When in 540E position, engine speed is mechanically limited to a maximum of 1700 rpm. 540E operation will not engage if engine speed is above 1700 rpm.

2. NOTE: PTO is engaged or disengaged without depressing clutch pedal.


   P16502-UN-11APR12


   LV14244-UN-10MAY11

   Indicator

   A - EH PTO Switch

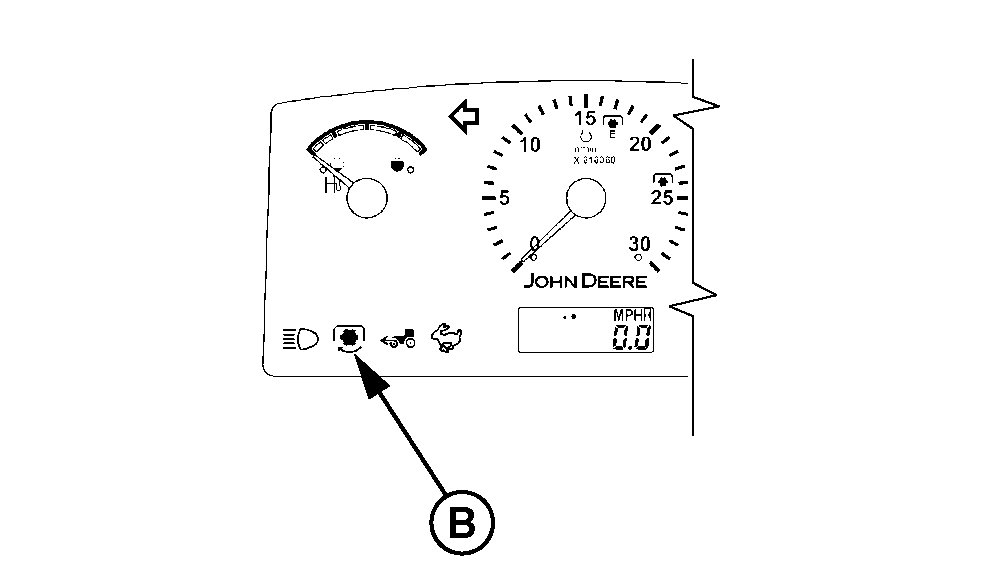

   B - PTO Indicator

   To engage PTO, lift switch knob (A) up to “I” position.

   PTO indicator (B) will light when PTO is engaged.

   IMPORTANT: A warning alarm will sound if operator leaves seat with PTO engaged.

   NOTE: If engine is stopped while PTO is engaged, restart engine, depress and lift switch knob to reset and engage PTO.

---




3. CAUTION:


   P16502-UN-11APR12

   Avoid personal injury. Stop engine and allow PTO driveline to stop before adjusting, connecting or cleaning PTO-driven equipment.

   To avoid entanglement with rotating shaft, always disengage PTO when not in use.

   To disengage PTO, push switch knob (A) down to “O” position.

   PTO brake automatically engages when PTO is disengaged.

---
