Check Transmission-Hydraulic System Oil Level

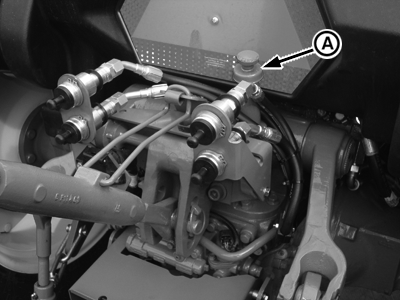

P16510-UN-11APR12

A - Dipstick

Service Interval — Every 50 hours

1. Remove dipstick (A) and wipe it clean. Insert dipstick fully. Oil level should be between full mark and end of dipstick.

2. Add oil if level is low. (See Anti-Chatter Transmission-Hydraulic oil in Fuels, Lubricants and Coolant section).
