Drain Water and Sediment from Fuel Tank — Cab with PowrReverser™ Transmission (PY)
|
Service Interval – Every 10 Hours or Daily |
NOTE: Place a small container under drain fitting to catch draining fuel. Dispose of waste properly.
P16167-UN-07DEC10

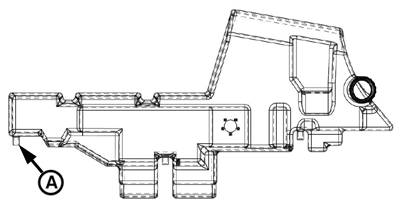

A - Fuel Tank Drain Plug
Open fuel tank drain plug (A) to bleed accumulated moisture and sediment from the fuel tank. Tighten plug when clear fuel runs from fitting.|
PX07220,0001623-19-20120411 |
