Locating Load Center (Fuses)—OOS with PowrReverser™ Transmission (PY)

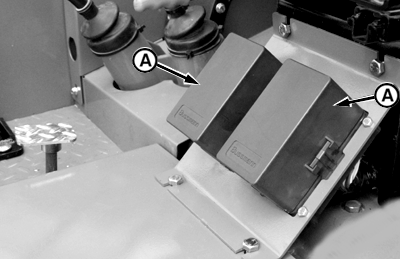

P16019-UN-17MAR10

A - Cover

Remove covers (A).

All electrical circuits are protected by fuses. Amperage rating is marked on each fuse, plus fuses are color coded to ensure proper replacement.

Fuse Rating	Color
5 Amp	Orange
10 Amp	Red
15 Amp	Blue
20 Amp	Yellow
30 Amp	Green

IMPORTANT: DO NOT replace original fuse with higher rated fuse or machine damage may occur. If original size fuse will not carry electrical load and continues to blow, have the electrical system checked by your John Deere dealer.

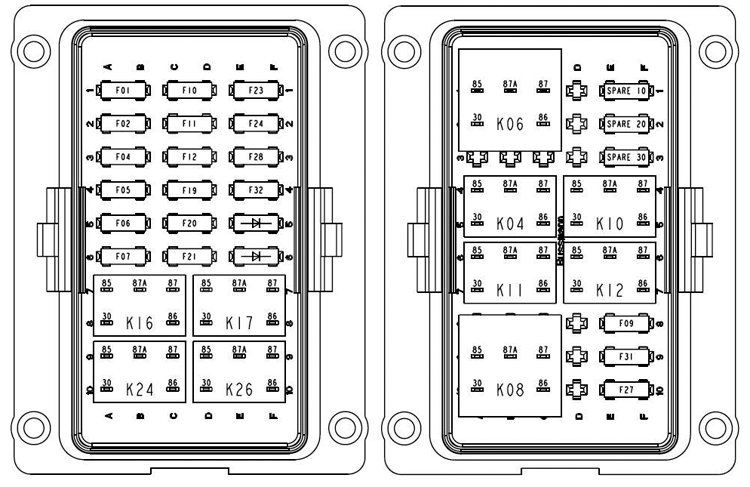

P16515-UN-13APR12

Fuse F01 - Key Switch Fuse

Fuse F02 - Turn/Hazard Fuse

Fuse F04 - Light Switch Fuse

Fuse F05 - Instrument Cluster Fuse

Fuse F06 - Turn Signal Light Switch Fuse

Fuse F07 - Work Lamp Fuse

Fuse F10 - Battery Switch Fuse

Fuse F11 - Battery Unswitch Fuse

Fuse F12 - Trailer Power Fuse

Fuse F19 - EH Controller Fuse

Fuse F20 - ELX Fuse

Fuse F21 - ELX Fuse

Fuse F23 - Low Beam Fuse

Fuse F24 - High Beam Fuse

Fuse F28 - Seat Fuse

Fuse F32 - Flood Light Fuse

V08 - Diode

V09 - Diode

K16 - Neutral Relay

K17 - Transmission Enable Relay

K24 - ELX Relay

K26 - Accessory Relay

K06 - Trailer Power Relay

Spare - 10 Amp

Spare - 20 Amp

Spare - 30 Amp

K04 - PTO Off/Neutral Relay

K10 - Clearance Relay

K11 - Fuel Flow Relay

K12 - Neutral Latch Relay

K08 - Work Lamp Relay

F09 - Tail/Clearance/License Light Fuse

F31 - Tail/Clearance/License Light Fuse

F27 - Backup Alarm Fuse
