Locating Fuses—OOS and IOOS with Synchronized and CollarShift Transmissions

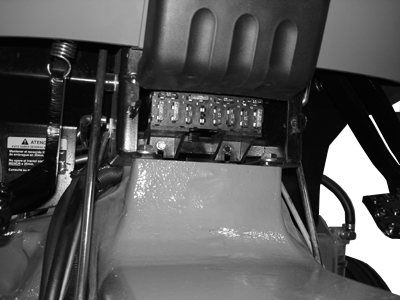

P13704-UN-09AUG05

NOTE: Front key switch panel is removed for photo purposes.

All electrical circuits are protected by fuses. Amperage rating is marked on each fuse, plus fuses are color coded to ensure proper replacement.

Fuse Rating	Color
5 Amp	Orange
10 Amp	Red
15 Amp	Blue
20 Amp	Yellow
30 Amp	Green

IMPORTANT: DO NOT replace original fuse with higher rated fuse or machine damage may occur. If original size fuse will not carry electrical load and continues to blow, have the electrical system checked by your John Deere dealer.

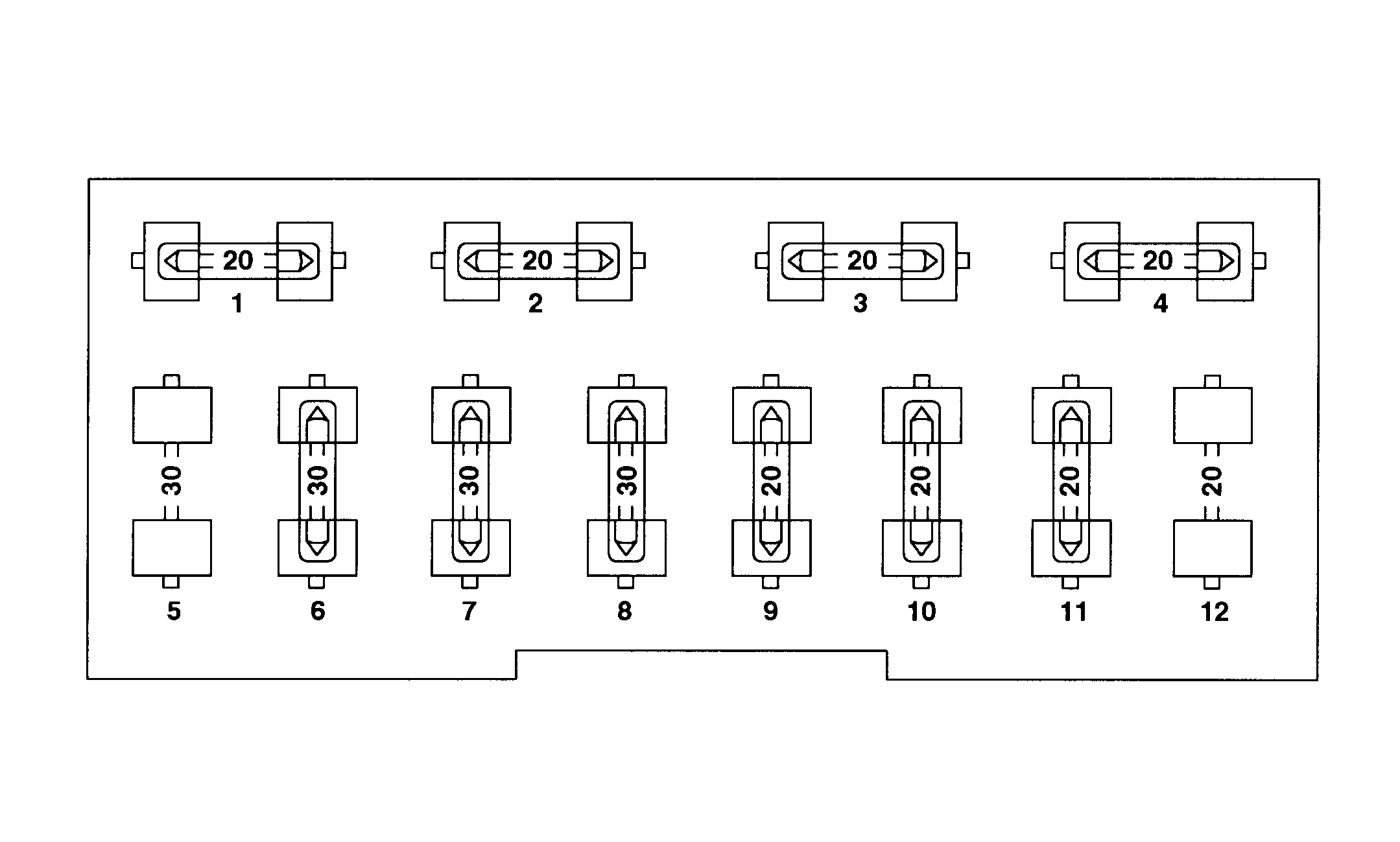

LV840-UN-13JUL95

1. 20 Amp - Alternator, instruments and engine-related indicators
2. 20 Amp - Fuel shut-off solenoid
3. 20 Amp - Warning lights and indicator
4. 20 Amp - Fender lamps (5625 and 5725) and flood light(s) (optional)
5. 30 Amp - Auxiliary circuit
   (“Hot” all the time)
6. 30 Amp - Key switch, starting circuit, PTO warning circuit, manifold heater circuit
7. 30 Amp - Lights turn signal
8. 30 Amp - Accessory relay
9. 20 Amp - Tail light(s)
10. 20 Amp - High-beam headlights and indicator
11. 20 Amp - Low-beam headlights
12. 20 Amp - Auxiliary circuit
    (key activated)
