Locating Fuses—Cab with PowrReverser™ (PM), Synchronized and CollarShift Transmissions

P13931-UN-29DEC05

Left-Hand Console

LV14276-UN-10MAY11

A - Cover

B - A/C and Wiper Fuse/Relay Block

Remove cover (A) to access main fuse and relay load center and fuses/relay block (B).

All electrical circuits are protected by fuses. Amperage rating is marked on each fuse, plus fuses are color coded to ensure proper replacement.

Fuse Rating	Color
5 Amp	Orange
10 Amp	Red
15 Amp	Blue
20 Amp	Yellow
30 Amp	Green

IMPORTANT: DO NOT replace original fuse with higher rated fuse or machine damage may occur. If original size fuse will not carry electrical load and continues to blow, have the electrical system checked by your John Deere dealer.

LV8607-UN-17SEP03

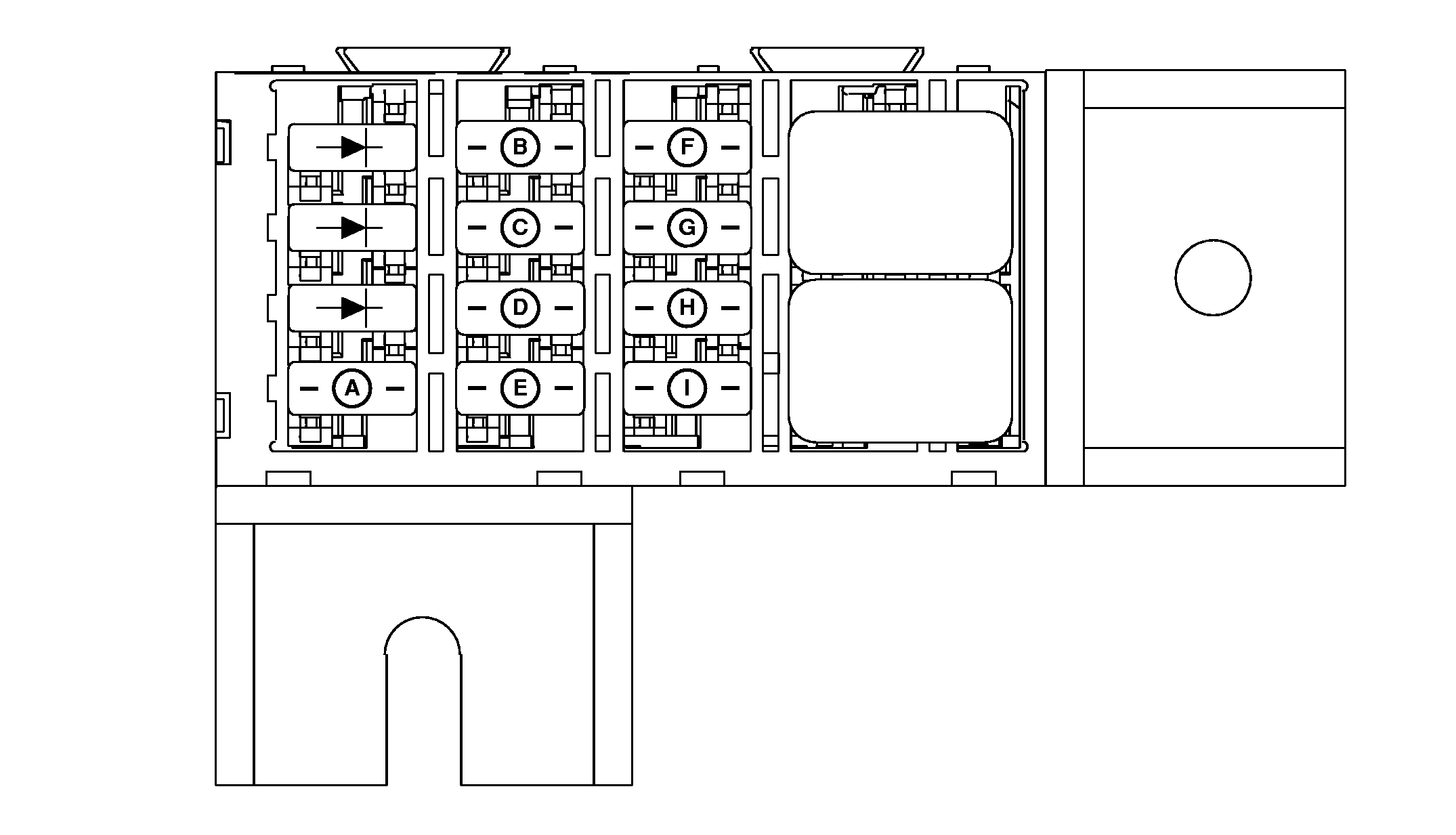

Load Center

A - Fuse F7, 10-Amp: Turn Switch

B - Fuse F1, 15-Amp: Key Switch

C - Fuse F3, 15-Amp: Low Beam

D - Fuse F5, 10-Amp: Instrument Cluster

E - Fuse F8, 10-Amp: Alternator

F - Fuse F2, 15-Amp: Light Switch

G - Fuse F4, 15-Amp: High Beam

H - Fuse F6, 10-Amp: Horn

I - Fuse F9, 10-Amp: Warning Lights

LV8608-UN-28AUG03

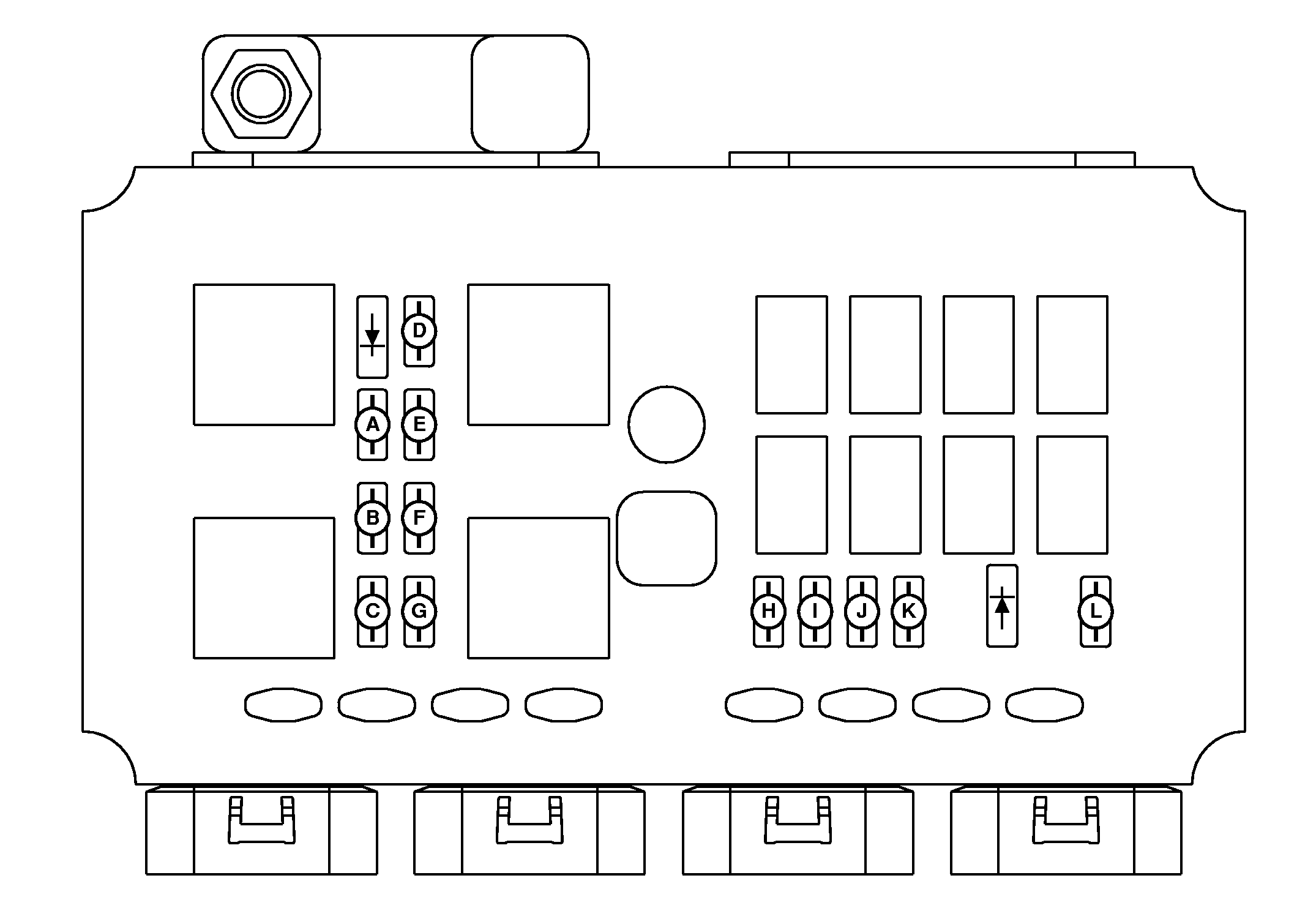

Electrical Load Center

A - Fuse F12, 10-Amp: Radio Power

B - Fuse F11, 30-Amp: Trailer Power

C - Fuse F10, 10-Amp: Tail Light

D - Fuse F16, 30-Amp: Cab Work Light

E - Fuse F15, 30-Amp: Convenience Outlet Power

F - Fuse F14, 30-Amp: Work Light

G - Fuse F13, 30-Amp: Open

H - Fuse F17, 30-Amp: Warning/Turning Lights

I - Fuse F18, 5-Amp: Diagnostic Fuse

J - Fuse F19, 20-Amp: Wiper Power

K - Fuse F20, 30-Amp: Right Blower Power

L - Fuse F21, 30-Amp: Left Blower Power
