Controller Location of the PowrReverser™ Transmission

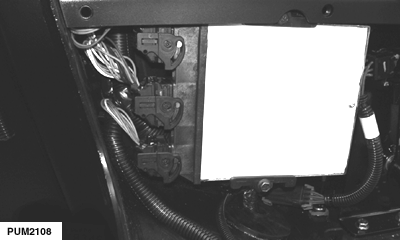

PUM2108
PUM2108-UN-06OCT07

Cab Shown

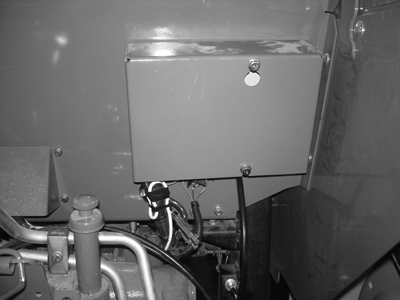

P16516
P16516-UN-13APR12

IOOS Shown


The Cab controller is located to the left side from the seat.

The IOOS controller is located at the rear of the tractor.


Controller Location of the PowrReverser™ Transmission OOS

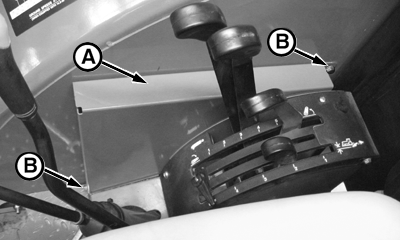

P16017
P16017-UN-17MAR10

P16018
P16018-UN-17MAR10

A - Cover

B - Screws

The OOS controller is located to the right side from the seat.

Remove screws (B) and cover (A).

PX07220,000162A-19-20120417
