Tread Settings—Adjustable Front Axle

LV9047
LV9047-UN-19NOV03

LV1515
LV1515-UN-05MAR96

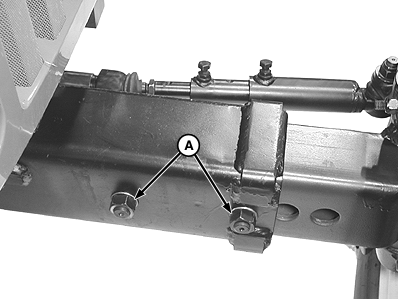

A - Adjustment Holes

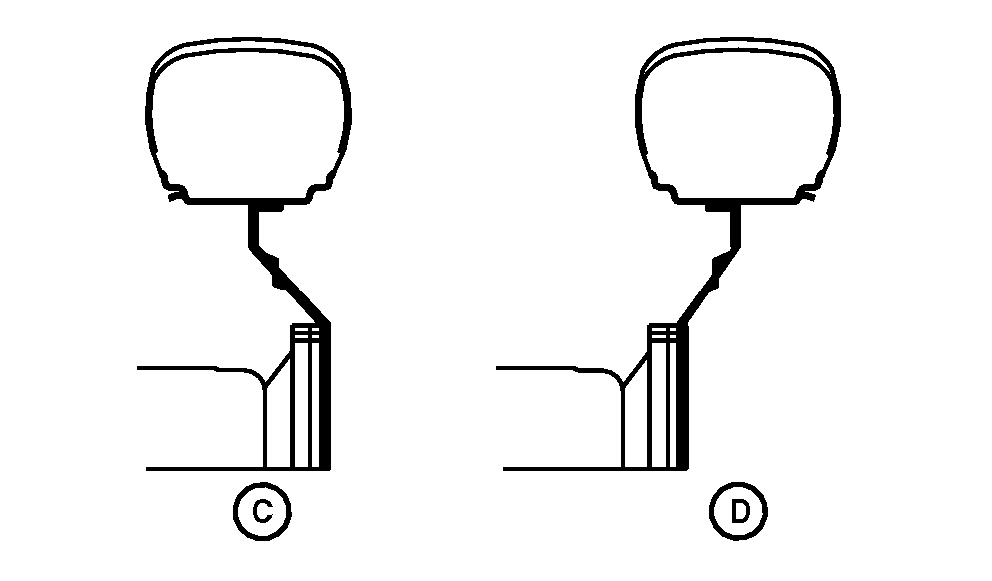

Front rims are offset. With some tires, this provides two tread spacings at each axle setting.

ADJUSTABLE FRONT AXLE TREAD SETTINGS

Diagram C

Centerline-to-Centerline

Tread Position¹

Tire

1

2

3

4

5

6

6.50-16

1449 mm

(57.0 in.)

1549 mm

(61.0 in.)

1649 mm

(64.9 in.)

1749 mm

(68.9 in.)

1849 mm

(72.8 in.)

1949 mm

(76.7 in.)

7.50-16

1449 mm

(57.0 in.)

1549 mm

(61.0 in.)

1649 mm

(64.9 in.)

1749 mm

(68.9 in.)

1849 mm

(72.8 in.)

1949 mm

(76.7 in.)

27/9.5-15

INT²

1546 mm

(60.9 in.)

1646 mm

(64.8 in.)

1746 mm

(68.7 in.)

1846 mm

(72.7 in.)

1946 mm

(76.6 in.)

10.00-16

1464 mm

(57.6 in.)

1564 mm

(61.6 in.)

1664 mm

(65.5 in.)

1764 mm

(69.4 in.)

1864 mm

(73.4 in.)

1964 mm

(77.3 in.)

ADJUSTABLE FRONT AXLE TREAD SETTINGS

Diagram D

Centerline-to-Centerline

Tread Position³

Tire

1

2

3

4

5

6

6.50-16

1583 mm

(62.3 in.)

1683 mm

(66.3 in.)

1783 mm

(70.2 in.)

1883 mm

(74.1 in.)

1983 mm

(78.1 in.)

2083 mm

(82.0 in.)

7.50-16

1583 mm

(62.3 in.)

1683 mm

(66.3 in.)

1783 mm

(70.2 in.)

1883 mm

(74.1 in.)

1983 mm

(78.1 in.)

2083 mm

(82.0 in.)

27/9.5-15

1527 mm

(60.1 in.)

1627 mm

(64.1 in.)

1727 mm

(68.0 in.)

1827 mm

(71.9 in.)

1927 mm

(75.9 in.)

2027 mm

(79.8 in.)

10.00-16

1561 mm

(61.4 in.)

1661 mm

(65.4 in.)

1761 mm

(69.3 in.)

1861 mm

(73.3 in.)

1961 mm

(77.2 in.)

2061 mm

(81.1 in.)

¹ Tread position 1 is with axle adjustment at its most inward location. See Adjust Front Axle Tread Width in this section.
² Interference (Do not use)
³ Number 1 position is with axle adjustment at its most inward location. See Adjust Front Axle Tread Width in this section.
