Locating Load Center (Fuses)—OOS with PowrReverser™ Transmission (PM)

P16019-UN-17MAR10

A - Cover

Remove covers (A).

All electrical circuits are protected by fuses. Amperage rating is marked on each fuse, plus fuses are color coded to ensure proper replacement.

Fuse Rating	Color
5 Amp	Orange
10 Amp	Red
15 Amp	Blue
20 Amp	Yellow
30 Amp	Green

IMPORTANT: DO NOT replace original fuse with higher rated fuse or machine damage may occur. If original size fuse will not carry electrical load and continues to blow, have the electrical system checked by your John Deere dealer.

P16020-UN-25MAR10

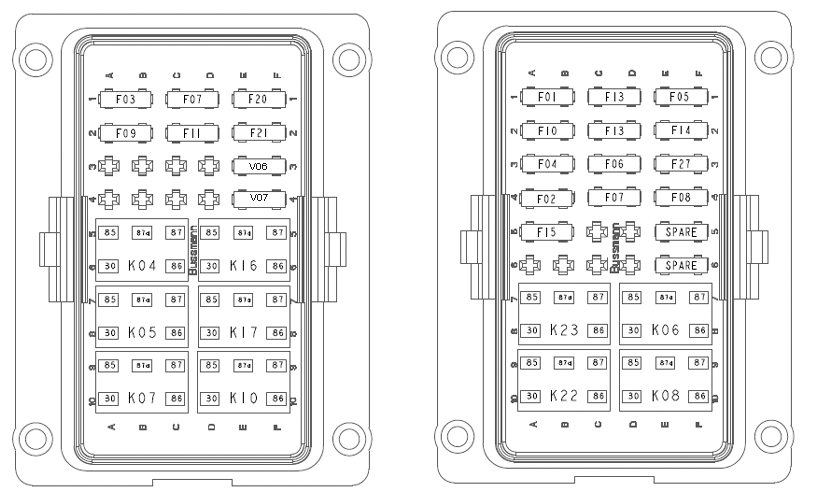

Identification Fuses

F03 - 10A Position Front

F09 - 15A Position Rear

F07 - 10A Turn Signal Switch

F11 - 30A Battery Switched

F20 - 10A EHC

F21 - 10A ELX

V06 - Hazard Left

V07 - Hazard Right

K04 - Right Turn Relay

K05 - Left Flash Relay

K07 - Left Turn Relay

K16 - Not Neutral Relay

K17 - Trans Enable Relay

K10 - Right Flash Relay

F01 - 20A Key Switch

F10 - 30A Trailer Power

F04 - 10A Light Switch

F02 - 15A Headlamps

F15 - 10A Flood Light

F13 - 30A Warning Lights

F16 - 20A Rear Work Lamp

F06 - 30A Battery Unswitched

F12 - 10A Horn

F05 - 10A IC Power

F14 - Diagnostic

F27 - 10A ECU Power

F08 - 10A ELX

SPARE - 15A

SPARE - 10A

K23 - ELX Relay

K22 - PTO Off/ Neutral Relay

K06 - Trailer Power Relay

K08 - Rear Work Lamp Relay
