Locating Fuses—Cab with PowrReverser™ Transmission (PY)

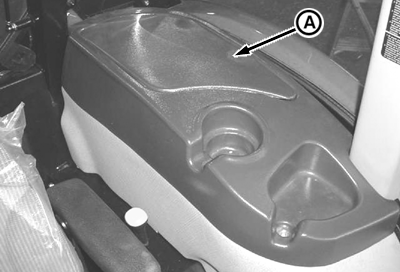

P13931-UN-29DEC05

Left-Hand Console

LV14276-UN-10MAY11

A - Cover

B - A/C and Wiper Fuse/Relay Block

Remove cover (A) to access main fuse and relay load center and fuses/relay block (B).

All electrical circuits are protected by fuses. Amperage rating is marked on each fuse, plus fuses are color coded to ensure proper replacement.

Fuse Rating	Color
5 Amp	Orange
10 Amp	Red
15 Amp	Blue
20 Amp	Yellow
30 Amp	Green

IMPORTANT: DO NOT replace original fuse with higher rated fuse or machine damage may occur. If original size fuse will not carry electrical load and continues to blow, have the electrical system checked by your John Deere dealer.

LV14138-UN-07APR11

Load Center

F01 - 20-Amp: Ignition Switch Fuse

F02 - 30-Amp: Warning Lights and Turn Lights Fuse

F03 - 10-Amp: Dome Light and Radio Fuse

F04 - 20-Amp: Light Switch Fuse

F05 - 15-Amp: Low Beam Headlights and Loader Lights Fuse

F06 - 30-Amp: Junction Block, CNVC Outlet, and Cigar Lighter Fuse

F07 - 15-Amp: Horn Fuse

F08 - 10-Amp: Instrument Cluster Fuse

F09 - 10-Amp: Instrument Cluster Diagnostics Fuse¹

F10 - 30-Amp: Trailer Auxiliary Power Fuse

F11 - 30-Amp: Junction Block, CNVC Outlet, Mid-Mount SCV, and Air Seat Fuse

F12 - 10-Amp: Radio Fuse

F13 - 20-Amp: Rear Work Lights Fuse

F14 - 20-Amp: Front Work Lights and Beacon Light Fuse

F15 - 10-Amp: Tail Lights Fuse

F16 - 15-Amp: High Beam Headlights and Loader Lights Fuse

F17 - 10-Amp: Reverser Switch Fuse

F18 - 10-Amp: ELX Relay, Seat Switch, Wheel Speed Sensor, and Turn Light Relays Fuse

F19 - 10-Amp: ELX. Service ADVISOR Fuse

F20 - 10-Amp: Neutral Relay, Countershaft Speed Sensor, MFWD Switch, Brake Pedal Switch, PTO Switch, and Park Switch Fuse

F21 - 10-Amp: EH Control Unit Fuse

F22 - 15-Amp: High/Low Beam Relay Fuse

F23 - 30-Amp: HVAC and Right Blower Fuse

F24 - 20-Amp: Front Wiper Fuse

F25 - 20-Amp: Left Blower

K01 - Warning Light Power Relay

K02 - Left Turn Relay

K03 - Right Turn Relay

K04 - Flash Logic Relay

K05 - Turn/Warn Relay

K06 - Trailer Power Relay

K08 - Rear Work Light Relay

K09 - Front Work Lights Relay

K15 - ELX Power Relay

K16 - Neutral Relay

K17 - Transmission Enable Relay

K20 - HVAC Relay

K21 - Wiper System Relay

K22 - Left Blower Relay

K23 - Right Blower Relay

V01 - Reverse Polarity Protection Diode

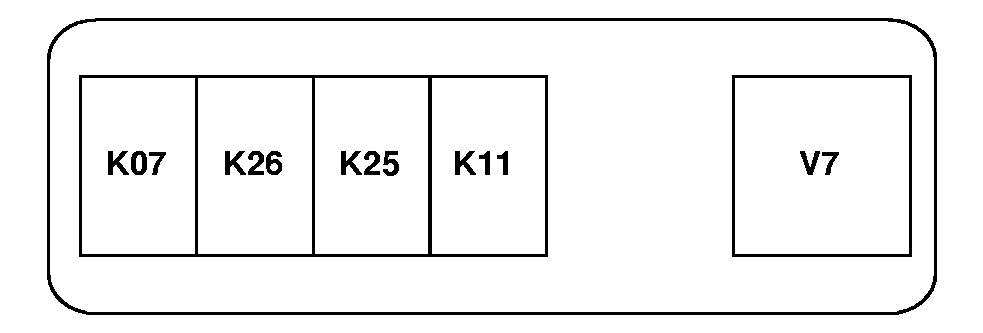

LV14139-UN-10MAY11

Center Console Relays

K07 - Accessory Relay

K11 - PTO Off/Neutral Relay

K25 - High Beams Relay

K26 - Low Beams Relay

V7 - Diode Block
