Starting the Engine by Means of a Booster Battery

CQ208250-UN-09FEB07

Booster battery can be used as reinforcement when starting engine. Proceed as follows:

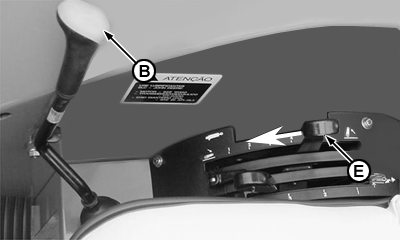

1. Place gearshift lever (B) in "P" position (Park).
2. Remove lateral grille of battery compartment and connect the 12 volt booster battery in parallel.
3. First connect the positive (+) cable and then the negative (-) cable of the booster battery.
4. Start up engine.
5. Remove booster battery, firstly disconnecting the negative pole.

CAUTION: The gas that is released is flammable. Carry out this operation in ventilated areas. Be careful not to invert cable polarity. Positive cable of booster battery should connect with positive of tractor battery, and the negative connect to the chassis.
