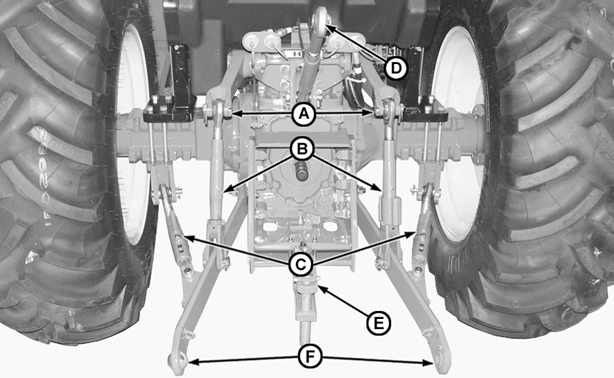

Three-Point Hitch Components

CQ267150-UN-13FEB07

Normal Version Tractor

A - Lift arms

B - Tensioner arms

C - Stabilizer chains

D - Center link

E - Drawbar

F - Hitch arms

Stabilizer Chains

Stabilizer chain adjustment is carried out with implement at maximum height. In upper hole of stabilizer chain it is possible to stabilize implement over full range, raised or lowered, without lateral sway. In center and lower chain hole the implement will be stabilized at maximum height and will show oscillation of approximately 10 cm and 20 cm respectively when lowered.
