Hydraulic Hitch Control Levers

CQ267070-UN-06MAR06

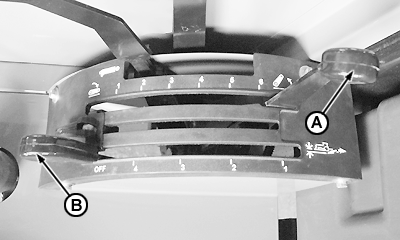

Controls hydraulic hitch position by means of two levers. Position control lever (A) and draft control lever (B).

Position control lever (A) raises hitch arms when moved backwards and lowers them when moved forwards. See “Using Hydraulic Hitch Position Control” for more information.

Draft control lever (B) controls hitch arm position in relation to draft loads. See “Using Draft Control” for more information.
