Adjusting Rate of Drop of Hydraulic Hitch

CAUTION:

CQ267160
CQ267160-UN-06MAR06

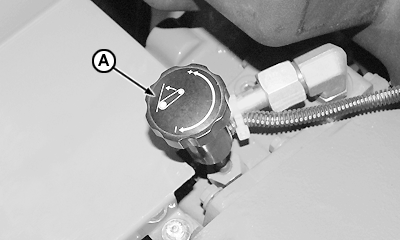

A - Rate of drop of hydraulic hitch adjustment handle

A rate of drop that is too great can cause accidents. The complete drop of the implement should take at least 2 seconds.

The hydraulic hitch drops quicker when it is coupled with a heavy implement. Adjust the rate of drop so that it is slow enough to be safe and not cause damage to the implements.

To reduce rate of drop, turn drop adjustment button (A) of hydraulic hitch (found under the rear right-hand side of the seat) clockwise.

Turn button counterclockwise to increase the rate of drop.

AG,LT04177,171-19-20080703
