Adjusting Hydraulic Hitch Control Lever Friction

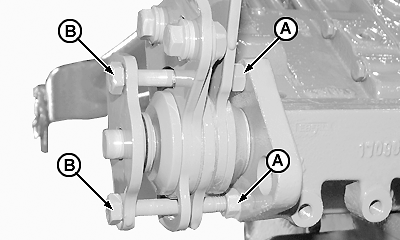

CQ267000-UN-11APR06

A - Locknut (2)

B - Adjustment pins (2)

If position control lever of hydraulic hitch or draft control lever do not stay in position, increase relevant lever friction loosening two locknuts (A) and tightening two adjustment pins (B) uniformly until correct friction is attained. Retighten locknuts (A) when adjustment is complete.
