Connecting Cylinder Hoses

CAUTION:

X9811
X9811-UN-23AUG88

CQ208580
CQ208580-UN-04JAN12

Pressurized fluid, when released, can penetrate skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks using a piece of cardboard. Protect hands and body from high pressure fluids.

If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene may result. Doctors unfamiliar with this type of injury should consult a knowledgeable medical source. Such information is available from the Deere & Company medical department in Moline, Illinois, U.S.A.

  1. Remove anti-dust protection (if any) from hose end.

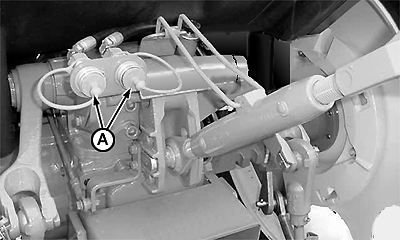

  2. Remove anti-dust plugs (A) from couplers.
  3. Make sure hose end and receptacle couplers are clean.

    CQ208600
    CQ208600-UN-04JAN12

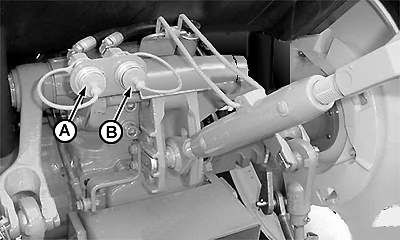

  4. Check hoses to determine which should be used to extend the cylinder. This hose should be connected to quick coupler terminal (A) or (B) to extend the cylinder, when SCV (selective control valve) levers are moved.

    Terminals (A) have a float position.

    CQ266990
    CQ266990-UN-06MAR06

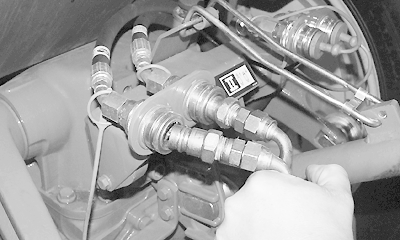

  5. To connect hoses, firmly push their end against coupler receptacle.

CAUTION: The hydraulic hoses may fail due to physical damage, twisting, wear and if exposed to the elements. Regularly check and replace if necessary.

AG,LT04177,182-19-20080703
