Connecting a Single Action Cylinder

CQ208580-UN-04JAN12

CQ267020-UN-06MAR06

For control to function correctly, a single action cylinder should be connected to SCV valve.

IMPORTANT: The volume of oil required to extend the cylinder should not force the transmission hydraulic system oil below dipstick mark. Check oil lever with cylinder fully extended.

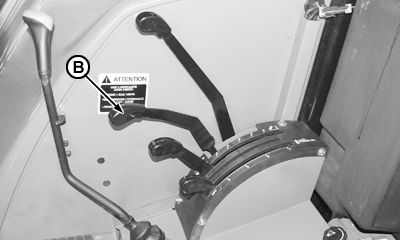

Move lever (B) fully forward to float position to lower cylinder. This prevents relief valve engagement and oil heating and also uses less tractor power. Float position allows the cylinder to extend and retract freely.
