Hydraulic Output Connections

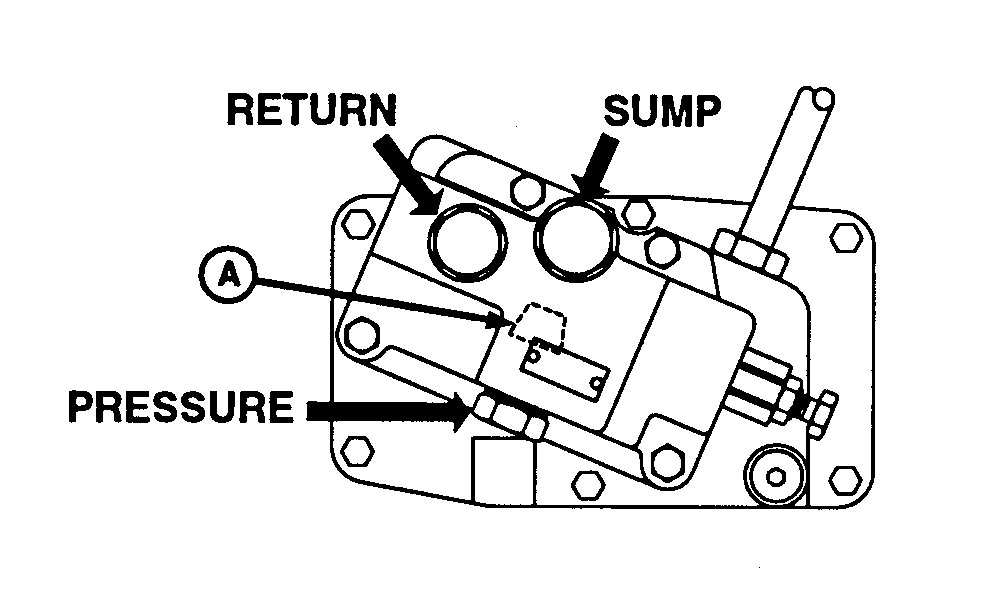

LV605-19-22APR94

For tractors without VCS

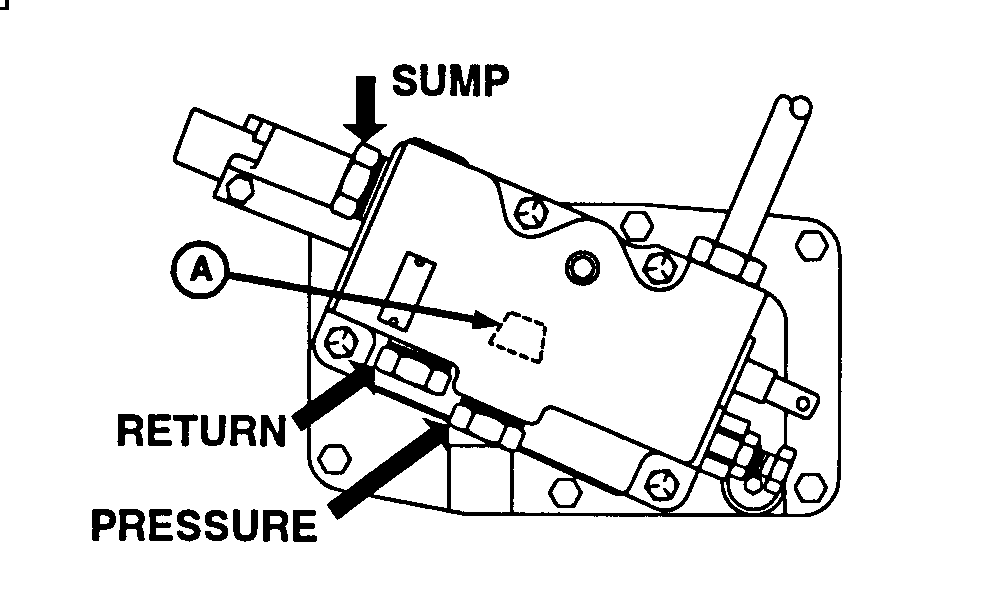

LV606-19-22APR94

For tractors with VCS

A - Plug

SCV and hydraulic hitch valve assembly may be adapted to receive a connection to the tractor's hydraulic system for remote hydraulic functions. The John Deere Dealership can provide parts that allow making connections to the channels and bypass normal oil flow through plug (A).

Make sure that hydraulic functions to be connected are compatible with open center hydraulic systems with 0.75 l/s and 19,000 kPa (190 bar; 2850 psi) capacity.
Maximum hydraulic system pressure will be limited by the tractor's main pressure relief valves and can not be increased by using remote valves (external relief valves). It is not necessary to install remote relief valves unless a lower relief pressure is required.
