Changing Transmission/Hydraulic Oil Filter - 5075E, 5078E and 5085E Tractors

CQ161690-UN-12FEB07

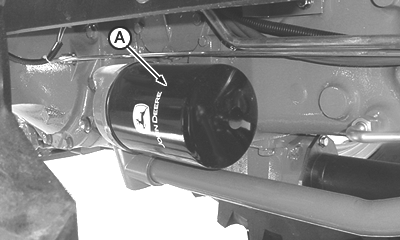

Rear lower tractor view - transmission oil filter

1. Remove filter (A), apply fine film of oil to new filter before installing it. Tighten an additional 1/2 turn, by hand.
2. Run engine for a few seconds and check transmission/hydraulic system oil level.
3. Add transmission/hydraulic oil if necessary (See “Fuel, Lubricants, Oil and Coolant” Section).
