Adjusting PTO Clutch Rod

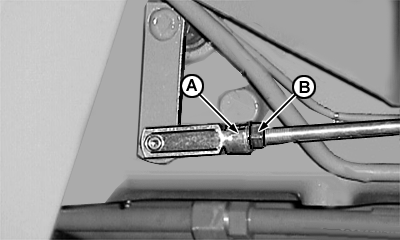

CQ175060-UN-13FEB07

Adjust drive rod length, as follows:

1. Park tractor and engage parking brake.
2. Position PTO lever (A) backwards (disengaged position).
3. Remove clip pin (A) from front end of clutch drive rod and loosen nut (B).
4. Adjust rod length so as to eliminate play. Increase rod length turning clip half a turn, so as to provide a small play for the lever. This leaves the clutch bearing free when it is not engaged.
