Change Transmission and Hydraulic System Oil

IMPORTANT: Whenever changing Transmission/Hydraulic System oil, also change oil filter (see “Service—Every 625 hours” Section).

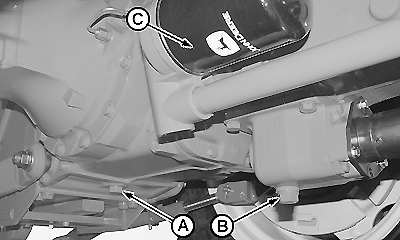

CQ267220-UN-02APR08

A - Transmission drain plug

B - MFWD drive drain plug

C - Hydraulic/transmission filter

Remove transmission housing drain plug (A) and drain oil. For tractors with 4X4 front-wheel drive, remove drain plug (B) on intermediate housing. Lower 3-point hydraulic hitch to remove oil from circuit.

Remove filter (C). Apply a film of oil to edge of new filter and install it. Only tighten by hand.
