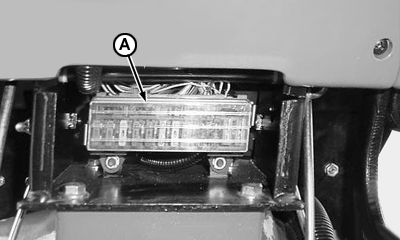

Fuse Locations

CQ208320-UN-08FEB07

A - Fuse Box

All electrical circuits (except the starter motor) are protected by fuses. Each fuse is marked with its current rating and color-coded to ensure correct installation.

Fuse Rating	Color
5 A	Orange
10 A	Red
20 A	Yellow
30 A	Green

IMPORTANT: To avoid machine damage, never replace a fuse with one having a higher rating. If the original fuse cannot withstand the load and fails repeatedly, have your John Deere dealer check the electrical system.
