Replacing Fuel Line Filter - 5075E (if equipped)

  1. CAUTION: Always SHUT OFF engine, set parking brake and remove key before carrying out service tasks on fuel filters.

    CQ291333
    CQ291333-UN-23AUG11

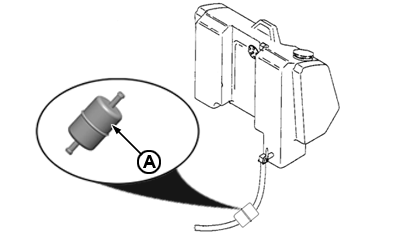

    Remove and properly dispose of filter (A).


  2. Install new filter and firmly attach clamps.

    IMPORTANT: If there is a loss of power, clean filter (A). See Cleaning Fuel Line Filter - 5075E (if equipped).

BL04947,0000330-19-20110823
