Checking Free Space Between Implement and Tires

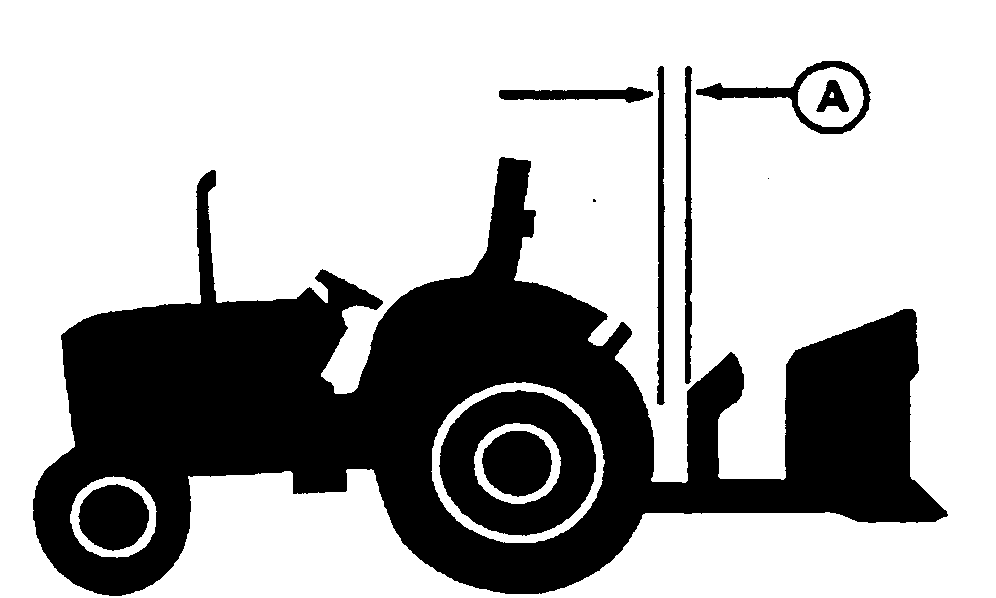

M47177-UN-31JAN92

A - Clearance

IMPORTANT: Make sure free space (A) between exterior diameter of tires and the implement is adequate, with hitch in raised position. When installing rear tires of greater diameter on a tractor with 3-point hitch, a quick coupler or similar device should be used to provide enough free space between tire and implement.
