Bolt Torque—Rear Axle
CQ207660-UN-08FEB07

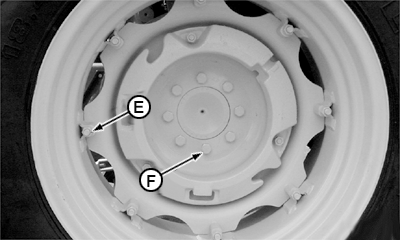

Tighten bolts at following points:
E - Rim to disk = 245 N.m (180 lb-ft)
F - Disk to hub = 180 N.m (130 lb-ft)
|
GB52027,000003E-19-20060629 |
Bolt Torque—Rear Axle
Tighten bolts at following points: E - Rim to disk = 245 N.m (180 lb-ft) F - Disk to hub = 180 N.m (130 lb-ft)
|
