Rear Tread Limits

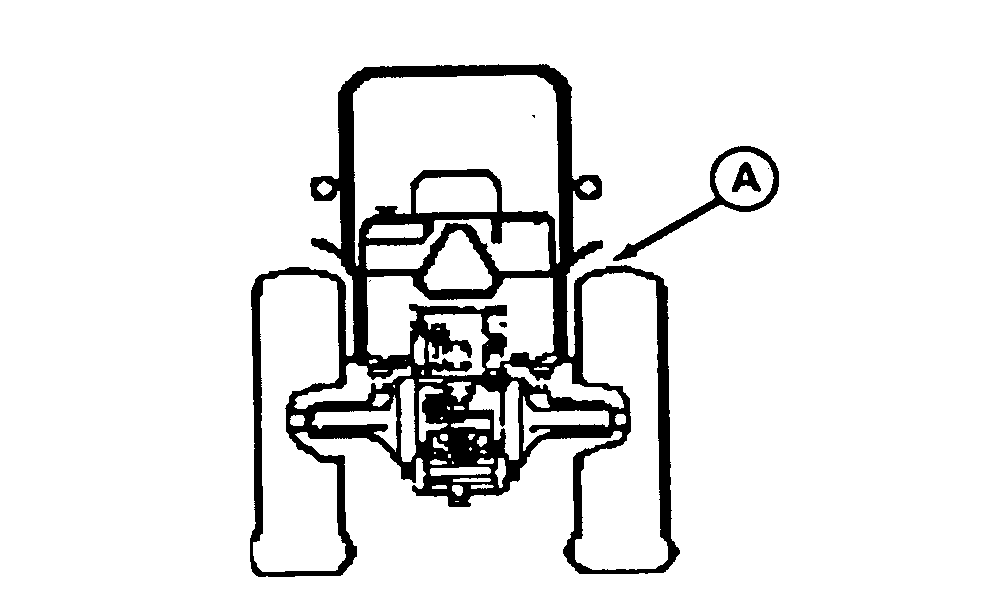

M47179-UN-31JAN92

IMPORTANT: Tires should have free space of at least 25 mm (0.98 in.) in relation to fenders (A). If installing rear tires of greater diameter, check free space between tires and fenders.
