CQ279492-UN-09FEB07

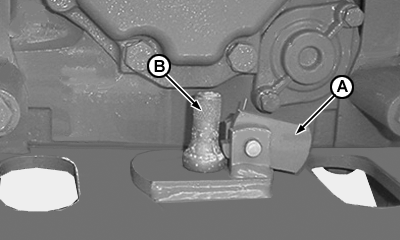

A - Fastener
B - Pin
Lift fastener (A) of drawbar pin.
Remove drawbar pin (B). Slide drawbar to desired position. Insert drawbar pin and secure it with fastener (A).
GB52027,0000163-19-20070209
