Throttle Friction Adjustment

CQ279497
CQ279497-UN-09FEB07

If throttle rod loosens and does not maintain position, adjust it as follows:

  1. Remove cover.

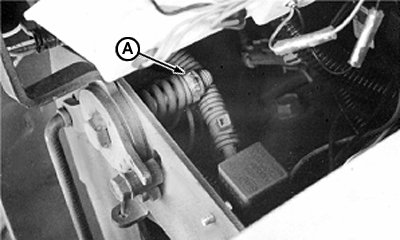

  2. Increase friction with adjustment nut (A). The spring provides tension through adjustment nut (A).
