Roll-Over Protective Structure (ROPS)

CQ279498-UN-09FEB07

CAUTION: Check that all parts are correctly mounted, and in the event that the roll-over protective structure (ROPS) is removed or its connections loosen, retighten all bolts to the appropriate torque before operating the tractor again.

The protection provided by the Roll-Over Protective Structure (ROPS) will be reduced if the structure suffers structural damage, such as caused by the tractor rolling over, or if the overall shape is altered by welding or by a strong impact. The Roll-Over Protective Structure (ROPS) must always be replaced if subject to any of the irregularities referred to above.

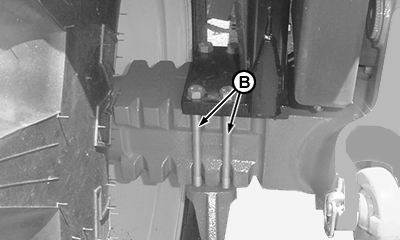

When installing any machine equipment requires loosening or removing ROPS, tighten assembly bolts (B) as specified:

Item	Measurement	Specification
ROPS assembly bolts	Torque	335 N.m (220 lb-ft)
