Selecting Drawbar Position

CQ279502-UN-12FEB07

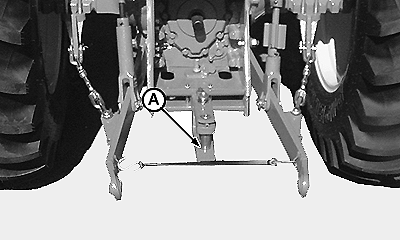

A - Hitch hole on drawbar

For maximum traction and efficiency, the drawbar should be put in short center position. (See Operator's Manual of Implement for more information).

IMPORTANT: For implements driven by the PTO, the drawbar should be in long position (as shown) to leave a space of 355 mm (14.0 in.) between hitch hole (A) of drawbar and PTO shaft end.
