Lubricate DANA 4x4 Front Axle Pivot Pin

CQ282343-UN-03JUN09

CQ282344-UN-03JUN09

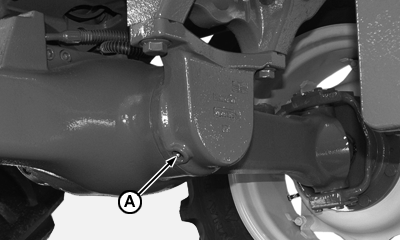

A - MFWD Front Pivot Pin Grease Fitting

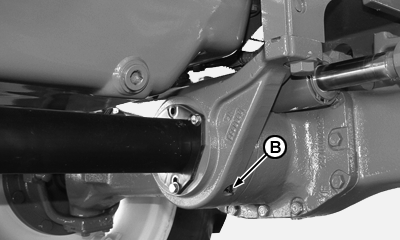

B - MFWD Rear Pivot Pin Grease Fitting

Lubricate MFWD front (A) and rear pivot (B) pins with several shots of multipurpose grease (see the Fuels, Lubricants and Coolant section).
