Adjust Toe-In - MFWD Tractor

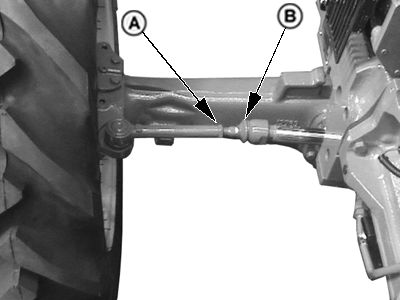

PY4490-UN-16JAN05

A - Tie Rod Lock Nuts

B - Inner Rod

1. Loosen lock nuts (A) at both ends of the tie rod.

2. Adjust at both sides evenly by turning inner rod (B) to increase or reduce tie rod length sufficiently to obtain a toe-in smaller than 3 mm (1/8 in.).

   DANA Front Axle
   Tie Rod Turns	Approximate Change
   1/8 turn	4 mm (3/16 in.)
   1/4 turn	8 mm (3/8 in.)
   1/2 turn	16 mm (5/8 in.)

   ZF Front Axle
   Tie Rod Turns	Approximate Change
   1/2 turn	0.75 mm (0.03 in.)
   1 turn	1.5 mm (0.06 in.)
   2 turn	3 mm (0.12 in.)

3. Tighten lock nuts to specification.

   Item	Measurement	Specification
   MFWD Tie Rod Lock Nuts	Torque	120 N·m (88 lb-ft)
