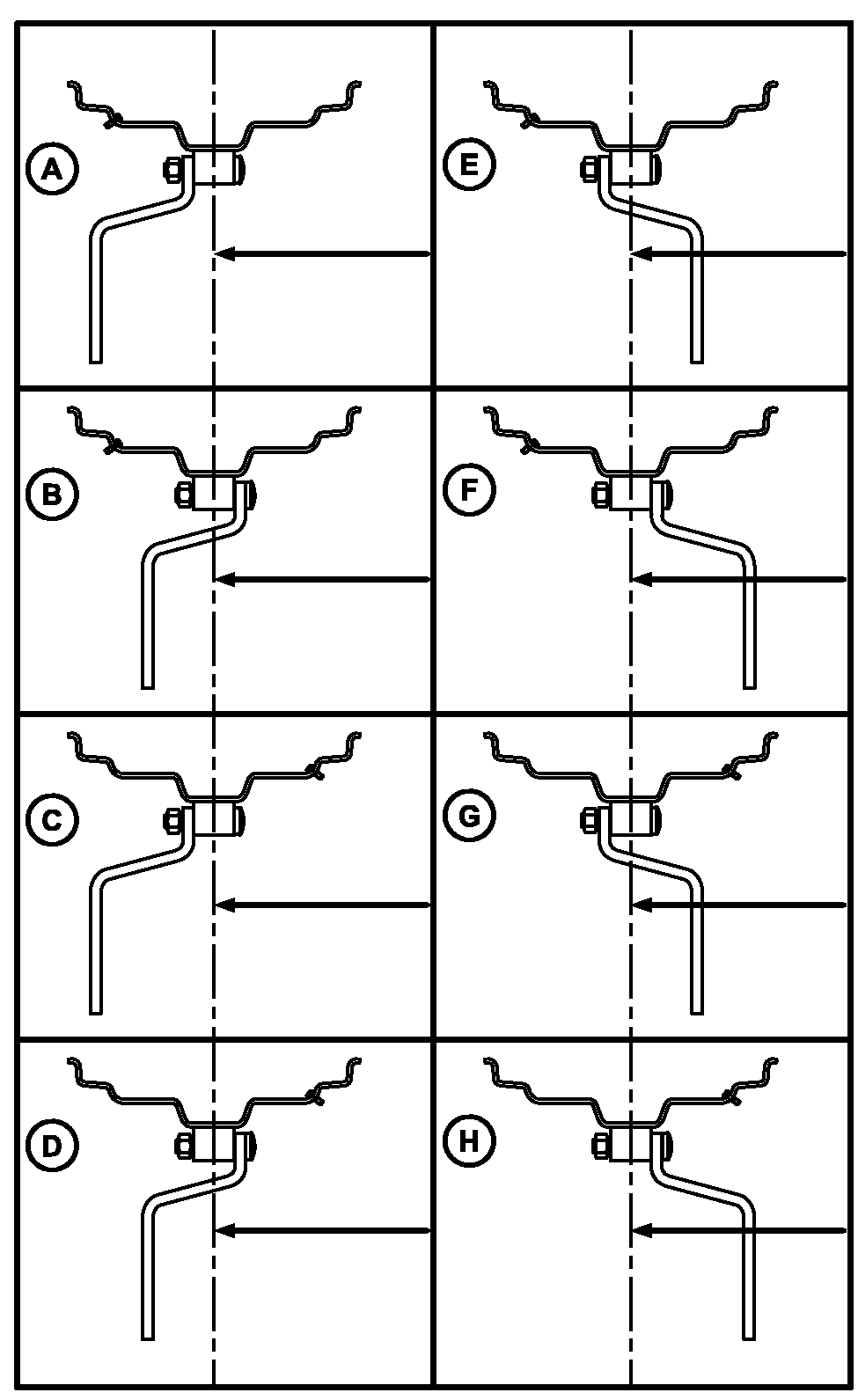

Positions of 4X4 Front Wheel Tread with Reversible Rims

CQ284228-UN-28MAY10

Tread Settings W8 X 24 Wheels
Front Tire	Mounting Position	Wheel Tread
9.5-24 R1	A	1276 mm (4.2 ft)
	B	1395 mm (4.6 ft)
	C	1370 mm ( 4.5ft)
	D	1488 mm (4.9 ft)
	E	1697 mm (5.6 ft)
	F	1815 mm (6.0 ft)
	G	1790 mm (5.9 ft)
	H	1908 mm (6.3 ft)

Tread Settings W10 X 24 Wheels
Front Tire	Mounting Position	Wheel Tread
12.4-24 R1	A	1227 mm (4.0 ft)
	B	1345 mm (4.4 ft)
	C	1420 mm (4.6 ft)
	D	1538 mm (5.0 ft)
	E	1647 mm (5.4 ft)
	F	1765 mm (5.8 ft)
	G	1840 mm (6.0 ft)
	H	1958 mm (6.4 ft)

NOTE: Mounting position setting A is not possible with wheel tread W10 X 24.

Tread Settings W12 X 24 Wheels
Front Tire	Mounting Position	Wheel Tread
14.9-24 R2	A	1227 mm (4.0 ft)
	B	1345 mm (4.4 ft)
	C	1420 mm (4.6 ft)
	D	1538 mm (5.0 ft)
	E	1647 mm (5.4 ft)
	F	1765 mm (5.8 ft)
	G	1840 mm (6.0 ft)
	H	1958 mm (6.4 ft)

NOTE: Mounting position settings A and B are not possible with wheel tread W12 X 24.

Tread Settings W10 X 28 Wheels
Front Tire	Mounting Position	Wheel Tread
11.2-28 R1	A	1285 mm (4.2 ft)
	B	1400 mm (4.6 ft)
	C	1378 mm (4.5 ft)
	D	1493 mm (4.9 ft)
	E	1689 mm (5.5 ft)
	F	1804 mm (5.9 ft)
	G	1782 mm (5.8 ft)
	H	1897 mm (6.2 ft)

NOTE: Mounting position setting A is not possible with wheel tread W10 X 28.
