Adjusting Toe-In — 4x2 Axle (Dana)

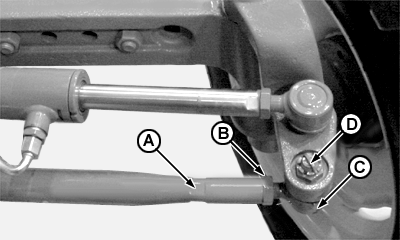

CQ207380-UN-08FEB07

A - Recess on steering rod to wrench

B - Locknut

C - Terminal

D - Castle Nut

Using wrench, keep steering rod firm at point (A) and loosen nut (B).

Remove cotter pin and castle nut.

Remove joint terminal (C).

Turn joint terminal (C) to one side. After adjustment, install terminal and tighten castle nut to 150 Nm (111 lb-ft) and install cotter pin.
