Lubricating 4x4 Front Axle

IMPORTANT: Perform this task every 10 hours of operation when operating tractor in extremely wet or muddy conditions.

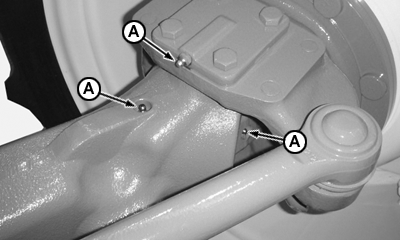

CQ289130-UN-07OCT10

DANA Axle

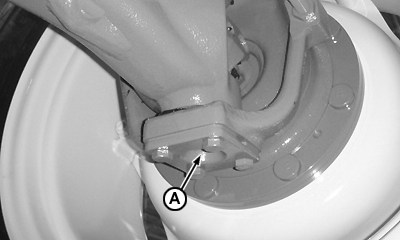

CQ289129-UN-07OCT10

DANA Axle

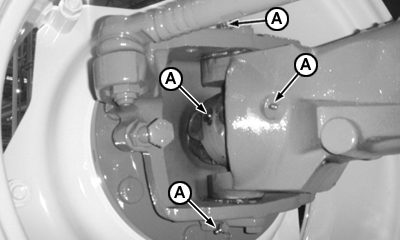

CQ289128-UN-07OCT10

ZF Axle

Grease lubrication points (A) on front axle as specified every 50 hours (Consult "Fuel, Lubricants and Coolant" Section).
