Tractor Ground Speeds

CQ215220-UN-12JUL02

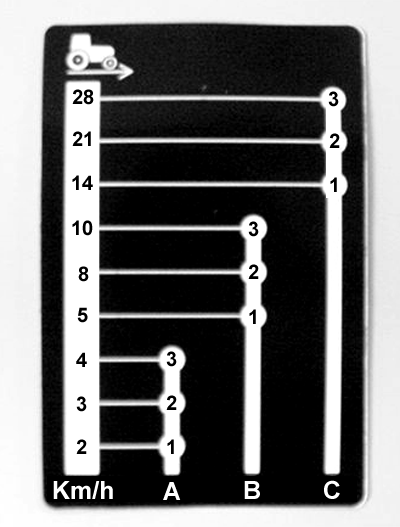

Speed Scaling decal

Transmission

Synchronized Type

Number of gears: 09 forward gears and 03 reverse gears.

Tractor speeds with engine at 2400 rpm
		Rear Tire 16.9-30 R1
	Gear	km/h	mph
	A1	2,19	1.36
	A2	3,04	1.89
	A3	4,23	2.63
	B1	5,1	3.17
F	B2	7,41	4.6
	B3	10,15	6.3
	C1	14,16	8.8
	C2	20,15	12.52
	C3	27,48	17.07
	R1	2,93	1.82
R	R2	7,06	4.39
	R3	19,44	12.08

Creeper transmission with engine at 2400 rpm.
		Rear Tire 16.9-30 R1
	Gear	km/h	mph
	A1	0,87	0.54
F	A2	1,21	0.75
	A3	1,69	1.05
	R1	1,17	0.73
R	R2	2,82	1.75
	R3	7,77	4.83
