Checking Front-Wheel Drive Oil Level

  1. CQ283763
    CQ283763-UN-23DEC09

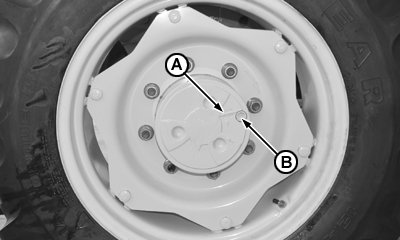

    A - Front-Wheel Drive Axle Oil Filling Mark

    B - Front-Wheel Drive Axle Oil Filler Plug

    Park tractor so that mark (A) on front-wheel drive hub is leveled with the ground. Remove filler plug (B). Oil level should be level at lower part of filler plug opening.


  2. CQ282340
    CQ282340-UN-02JUN09

    DANA Front Axle

    CQ161740
    CQ161740-UN-08FEB07

    ZF Front axle

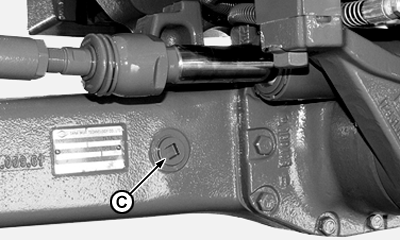

    Remove plug (C) to check oil level in axle compartment. Oil level should be level at lower part of filler opening.


  3. If level is low add Hy-Gard oil for DANA axle and SAE 90 oil for ZF axle.
