Lubricating Linkage Pin of ZF 4x4 Front Axle

CQ161630-UN-08FEB07

CQ161640-UN-08FEB07

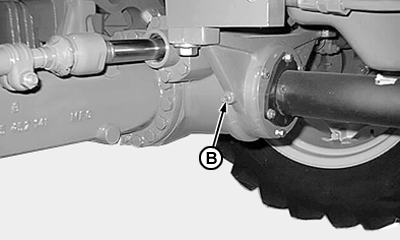

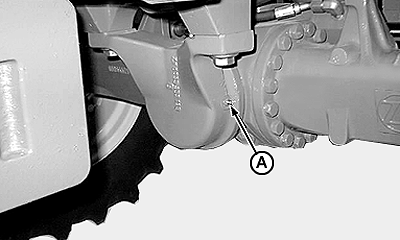

Lubricate front linkage pin (A) and rear pin (B) of front axle, with universal grease (See section "Fuel, Lubricants and Coolant").
