Instrument Check After Starting Up Engine

CQ283656-UN-21DEC09

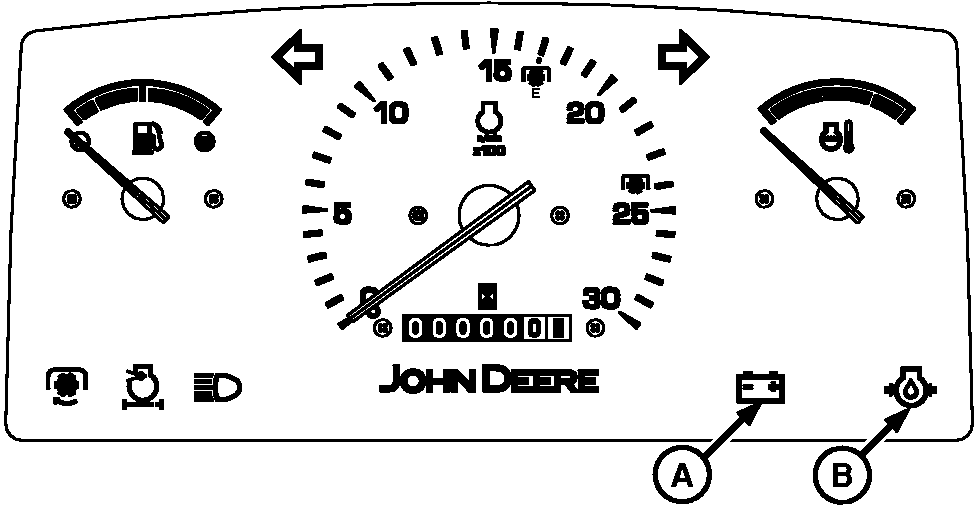

IMPORTANT: If charging system indicator lights (A) or oil pressure warning light (B) fail to go out or coolant temperature gauge (C) indicates engine overheating, stop engine and determine the cause.

Charging system indicator light (A) comes on if alternator output voltage is low. The light should come on when key switch is activated and go out when engine begins running.

If the light remains on for more than 5 seconds while engine is running normally, turn off engine and determine the cause. If the cause is not insufficient voltage or a snapped fan belt, see your John Deere dealership.

Oil pressure indicator light (B) comes on if engine oil pressure is low. The light should come on when key switch is activated and go out when engine begins running.

IMPORTANT: Never run engine on insufficient oil. If the light remains on for more than 5 seconds during normal operation of the engine, shut off engine and determine the cause.

If insufficient oil is not the cause, see your John Deere dealership.

If the thermometer needle (C) indicates excessive heating, shut off the engine and determine the cause.

Check radiator water level when engine cools. Also check that the honeycombed radiator grid is not obstructed. Check fan belt tension. If all these checks do not resolve the problem, consult your John Deere dealership.
