Work Light Usage

CQ283654-UN-17MAY11

CQ283660-UN-21DEC09

CAUTION: On public roads, set the lights switch to "High-beam" or "Low-beam" position. Never use work lights when traveling on public roads. The bright lights may impair the vision of other motorists.

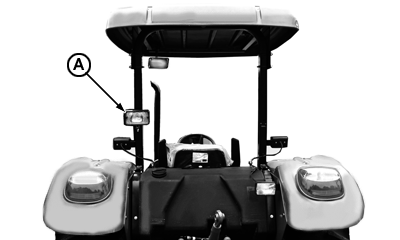

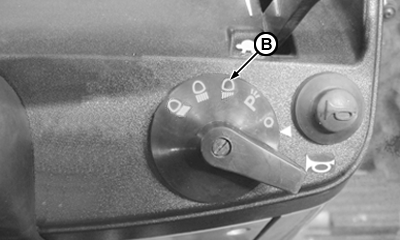

Tail light (A) is turned on when lights switch is set to work lights position (B).

NOTE: A second work light may be used, consult your John Deere dealership about this option.

Before driving on public roads, make sure the lights are clean enough so that other motorists can easily see them.
