Position Lights Usage

NOTE:

CQ283665
CQ283665-UN-17MAY11

CQ283666
CQ283666-UN-17MAY11

CQ283667
CQ283667-UN-21DEC09

When driving the machine, use accessory and device lighting to warn other motorists. Consult local legislation. Safety devices may be acquired through a John Deere dealership. Keep these safety devices in good condition, replacing them when necessary.

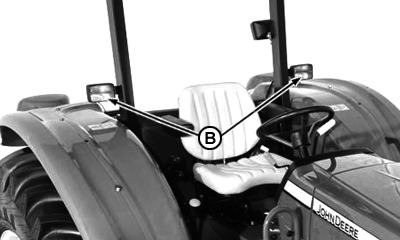

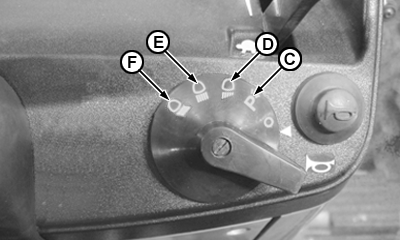

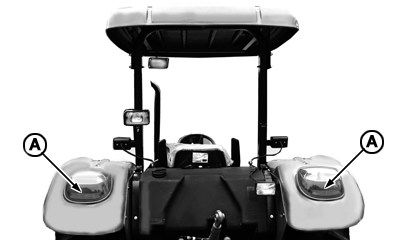

Rear position lights (A) and front position lights (B) are turned on when setting lights switch to position "Parking lights" (C), "Work lights" (D), "High-beam headlights" (E) and "Low-beam headlights" (F).

OU31386,000006D-19-20091116
