Using Liquid Ballast in Tires
CQ199670-UN-04SEP00

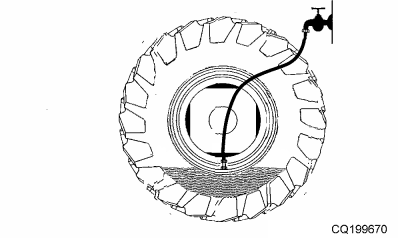

25% water, valve at 6 o'clock position
CQ199650-UN-01SEP00

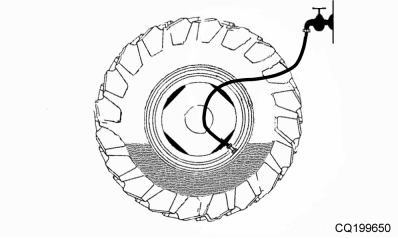

45% water, valve at 4 o'clock position
LX009450-UN-03JAN95

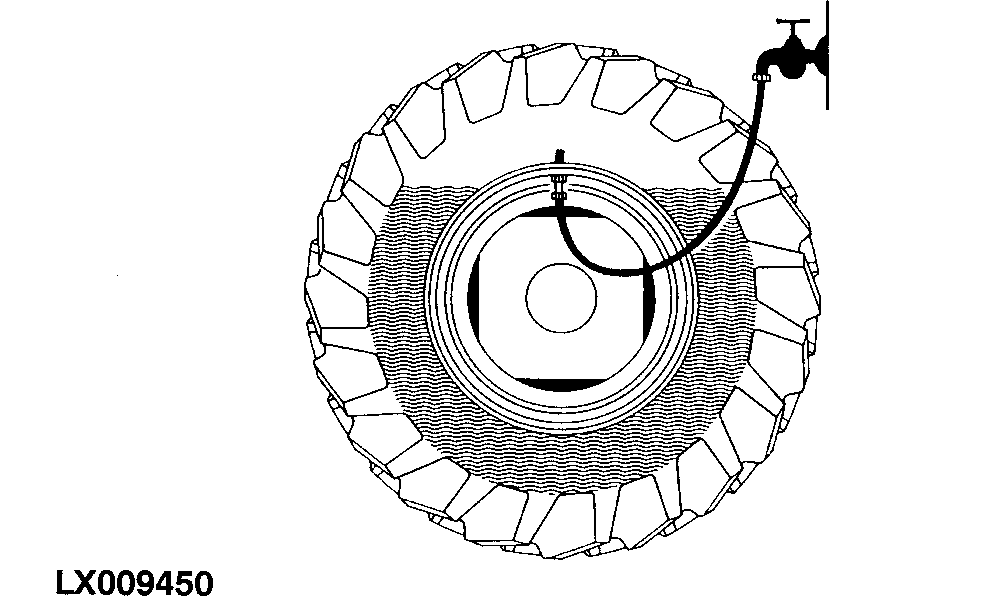

75% water, valve at 12 o'clock position
Up to 75% of tire capacity may be used for liquid ballast.
- Never use more than 75% of tire capacity for liquid ballast in front tires, otherwise the available space for tire deformation will be excessively reduced, causing hardening and subsequent damage to tire.
- To ballast front and rear tires at 75%, position tire valve in upper position (12 o'clock).
Chart no.4 — Liquid ballasting of tires
|
FRONT TIRES |
REAR TIRES |
||||||
|
Tire size |
25% water (kg/lb) |
40% water (kg/lb) |
75% water (kg/lb) |
Tire size |
25% water (kg/lb) |
40% water (kg/lb) |
75% water (kg/lb) |
|
7.50-18 |
14 (31) |
22 (49) |
42 (92) |
13.6-38 R1 |
72 (159) |
115 (253) |
216 (475) |
|
7.50-16 |
12 (26) |
19 (42) |
37 (82) |
15.5-38 R1 |
67 (148) |
107 (236) |
201 (443) |
|
9.5-24 |
21 (46) |
34 (75) |
64 (141) |
16.9-28 R1 |
87 (192) |
139 (306) |
261 (575) |
|
11.2-28 R1 |
34 (75) |
54 (120) |
102 (225) |
16.9-30R1 |
92 (203) |
147 (324) |
276 (608) |
|
14.9-24 R2 |
59 (131) |
95 (209) |
178 (392) |
18.4-30R2 |
106 (233) |
170 (374) |
320 (705) |
|
12.4-24 R1 |
37 (82) |
60 (132) |
113 (249) |
18.4-30R1 |
110 (243) |
176 (388) |
330 (728) |
|
— |
— |
— |
— |
23.1-26R2 |
161 (355) |
258 (569) |
484 (1067) |
Tire inflation pressure and weight
|
