Replacing Fuel Filter

PY5943-UN-31AUG09

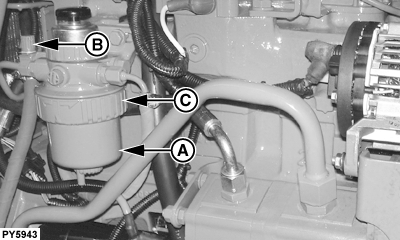

Change element (A) at least once a year.

1. Close fuel shut-off valve (B).
2. Remove retaining ring (C) and the filter.
3. Install new filter with retaining ring, tightening by hand.
4. Open fuel shut-off valve and drain air from filter. (See "Bleeding Fuel System", in "Service" section).
