Removing Hood

PY9499-UN-06MAY09

CQ283670-UN-21DEC09

1. Open the hood. (See procedure in this section).

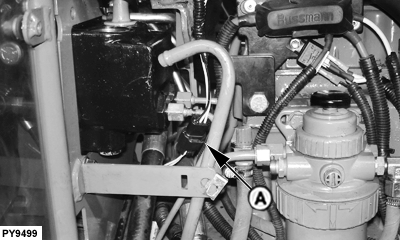

2. Disconnect lighting wiring harness connector (A).

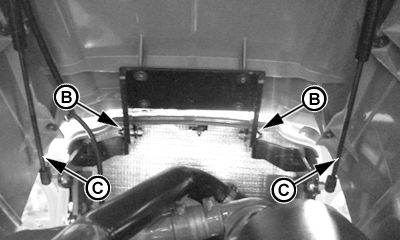

3. Remove bolts (B) and disconnect lift cylinders (C) of both sides.
4. With the help of a second person, lift hood above tractor.
5. Remove tractor hood.
