Replacing Fan/Alternator V-Belt

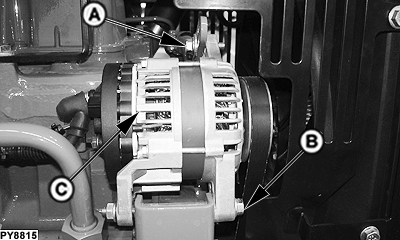

PY8815-UN-21APR09

1. Loosen bolt (A) and bolt (B) and turn alternator (C) to release belt.
2. Remove belt from drive pulley.
3. Remove belt passing it around fan.
4. Install new belt in reverse order to removal.
5. Adjust belt tension.
