Fuel System Components

CQ284059-UN-29MAR10

CQ284058-UN-29MAR10

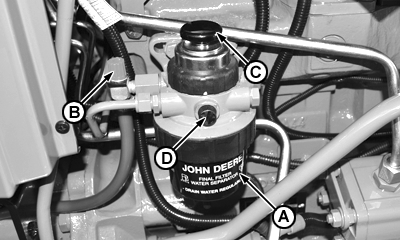

A - Fuel filter

B - Fuel shut-off valve

C - Manual pump

D - Bleeding screw

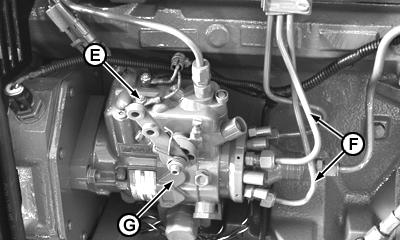

E - Electrical fuel shut-off valve.

F - Fuel injection lines

G - Fuel injection pump
