Turn Signal Usage

CQ283674-UN-23DEC09

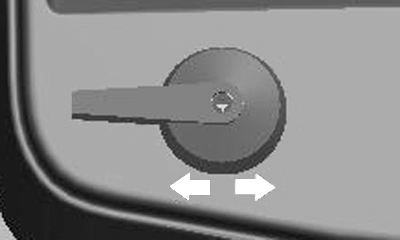

Turn signal - left-hand side of panel

CQ283652-UN-21DEC09

Move turn signal lever downward to indicate a left hand turn.

Move turn signal lever upward to indicate a right hand turn.

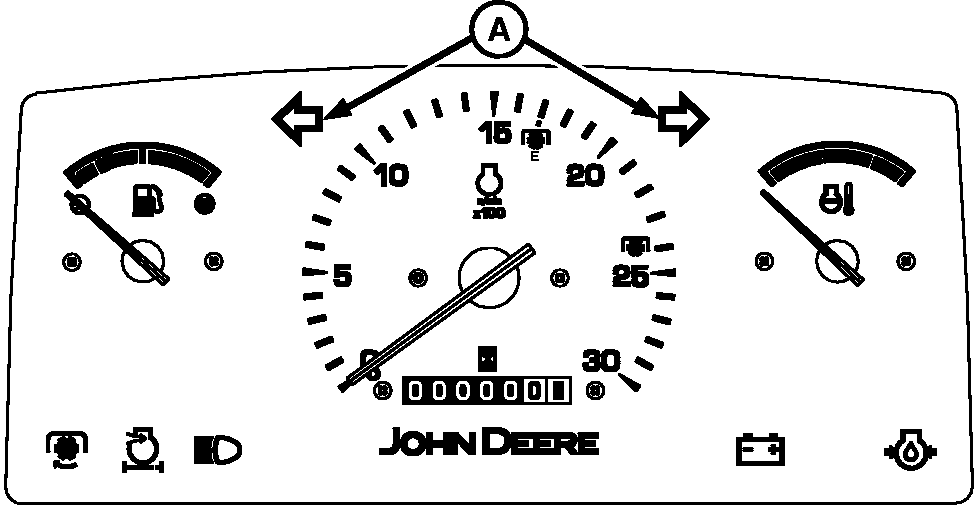

Indicator lights (D) flash to indicate turn direction.

When the lever is moved downward, left-hand signals flash and right-hand signals light up. When the lever is moved upward, the opposite occurs.

NOTE: Do not forget to return lever to normal position after completing maneuver.
